The basic problems of eliquid are divided into Eleven categories, mainly includes: dry burning, leakage/oil absorption, fried oil, airflow, liquid accumulation, smoke humidity, smoke aroma, smoke volume, smoke temperature, smoke saturation, hit throat feeling.
PART 1
Dry burning
In the product after oil injection static to smoke oil penetration heating wire, different equipment static time has a little difference, general common products can be in 3-5 minutes penetration.
Smoke oil full penetration of the smoke does not appear the coke cotton or pungent spicy throat paste core flavor is OK. There is a smell of burnt cotton or pungent throat for NG
Reason: The volatilization rate is higher than the oil speed, the power is too high, the output power does not match the resistance of heating wire, the poor fluidity of the fume oil or the flavor sugar is too high, the carbon deposit is too fast, the heating wire deformation and so on.
PART 2

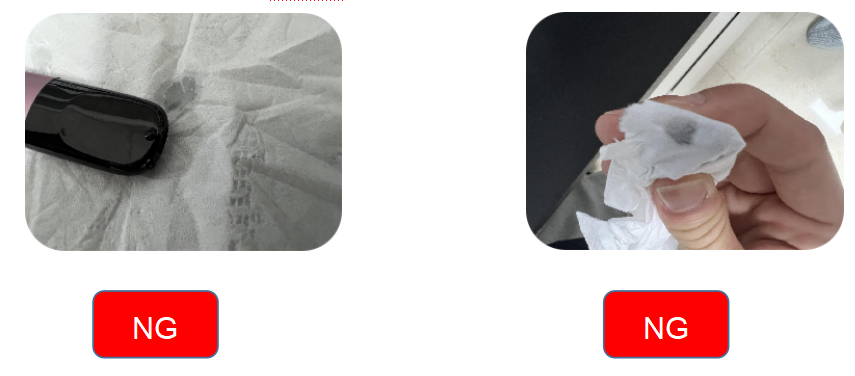

Leakage/oil absorption
Test the smoke bomb/nebulizer under the condition that it is sealed and leak-free. Check the smoke bomb/nebulizer for leakage when experiencing.
Normal test has smoke oil directly from the oil tank into the atomization ventilation pipe inhalation NG for the oral cavity, otherwise is OK
Reason: the smoke oil is too thin, too much oil injection, cotton wall thickness layer too thin and so on.
PART 3
Fried oil
In the use of e-cigarette in the process of the process of the suction of the oil crackling sound of burning oil. (it is normal for the first cold start to have a deep frying sound, with a persistent deep frying sound and an inlet with oil star particles of NG)
Reason: there is a gap between heating wire and oil storage cotton without full contact or deformation, oil velocity is greater than the volatile speed, and so on.
PART 4
Airflow
No air-holding, air leakage, abnormal sound during suction. The air-flow holdup is the feeling of too much suction resistance when drawing, air-flow air is the air infiltration except the air inlet hole.
Cause of air-holding: hole blocking, irregular deformation of cotton baling, swelling of cotton cloth after oil seepage. Smoke bomb battery pole equipment, such as plugging hole plug.
Causes of air leakage: usually smoke bomb/battery rod with a gap or sealed silica gel is not installed in place, air flow is generally too large intake hole/heating wire diameter is large/waste gas, etc. , unusual sound is generally produced by smoke bomb and battery rod air structure factors similar to whistles and so on.
PART 5

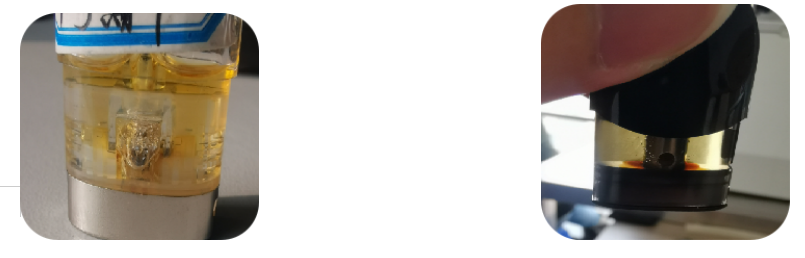

Liquid accumulation
Test how many orifices of the nebulizer head have accumulated fluid, it was observed whether there was too much liquid in the oil tank leading to liquid backflow (OK if the condensate was cleaned within 3 times during the normal test of full oil pumping to no oil pumping, and OK if there was no liquid backflow after more than 3 times)
Reasons: 1: the production of liquid is smoke oil through the heating wire atomized out of the residual steam condensed into water droplets.
2: fluid reflux is generally caused by excessive fluid accumulation.
PART 6
Smoke humidity
On the basis of no leakage and no dry burning, the test smoke bomb/atomizer head can record the smoke humidity at different power, subdivide the smoke drying/humidity, record the smoke humidity at different smoke oil concentration, etc. . (visual recording is required due to personal sensory differences, and the criteria are either wet/wet/normal/dry/dry) .
Reasons for humidity: there are different concentrations of smoke oil, storage oil cotton density, smoke oil formula
PART 7
Smoke aroma
In the non-dry burning no smell use of flavor smoke oil test atomizer, test its smoke flavor, sweetness has changed the flavor, the intensity of the record content: using full score of 10 points or serious attenuation/slight attenuation/OK -LRB-note flavor has changed, fade, etc.) due to personal sensory differences.
Note: The influence of flavor, light, sweet general dry burn, odor, smoke humidity, smoke temperature, smoke oil flavor additives content, heating silk and cotton material.
PART 8
Smoke volume
The amount of smoke mainly comes from VG and PG.
VG (glycerin) : the greater the proportion of VG Smoke, VG itself with a slight sweet smoke up more comfortable, less irritability.
Advantages: Smoky/healthy/less allergic/naturally sweet/throat feels good. Disadvantages: Sticky not easy to lead to oil/hit the throat feeling bad/dry sputum accumulation.
PG (propylene glycol) : smoke is much smaller than VG, itself with a touch of throat, stimulation than VG greater (vary from person to person) .
Advantages: easy flavor mixing/throat feel/good fluidity.
Disadvantages: side effects/irritability/less smoke.
PART 9
Smoke temperature
Test the smoke temperature of the atomizer/cartridge under different power conditions record content: hot/high/moderate/low.
Note: the main effect on flue gas temperature is the size of power, the greater the power, the higher the temperature.
PART 10
Smoke saturation
Test the smoke saturation sense of atomizer head at different power states and differet smoke oil concentration states record content: verysaturated /saturated /general / unsaturated.
PART 11
Hit throat feeling
Test the sensation of striking the throat with different levels of nicotine salt/nicotine in the smoke bomb/atomizer core using different flavours of smoke oil and record the sensation. (10 points for the full point system, due to differences in individual tolerance)
Note: There is a direct relationship between the sensation of striking the throat and the content/purity.
1: nicotine salt intake after hitting the throat feel more gentle non-stimulating harm is less, more easily absorbed by the human body to achieve the effect of smoking addiction, suitable for high-mg smoke oil.
2: nicotine nicotine in the same content will be much larger than nicotine salt irritant, there is a choking nose and throat feeling more top throat entry, suitable for low MG smoke oil.
